Product description:

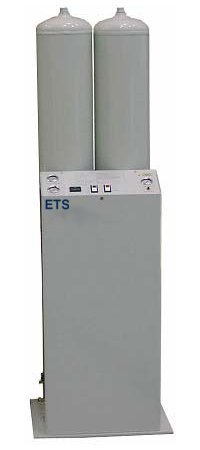

Oxygen generators are designed for any application where concentrated oxygen is needed for medical, industrial or other economic purposes. The oxygen is usually extracted from the ambient air and is made available in a performance-related amount.

Product characteristics:

• Produces oxygen from compressed air
• Microprocessor controlled
• Low operating cost
• Automatic and unattended operation
• Easy to install and maintain

Typical applications:

• Ozone (Generator) Feed Gas
• Waste/Water Treatment
• Thermal/Chemical Oxidation
• Cutting/Brazing/Soldering
• Environmental Remediation
• Glass Work/Manufacturing/Blowing
• Fish Farming
• Hospital Systems

Specifications:

Product Characteristics:
Product Flow: 2.10 - 2.37 Nm³/hr
Standard Product Pressure: 3.10 barg
Product Purity: 90-99% nominal
Product Dew Point: -73°C

Ambient Operating Conditions:
Operating Temperatur: Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between

Feed Air Requirements:
Temperatur: 4°C and 44°C
Purity: Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
Pressure: 6.21 barg minimum
